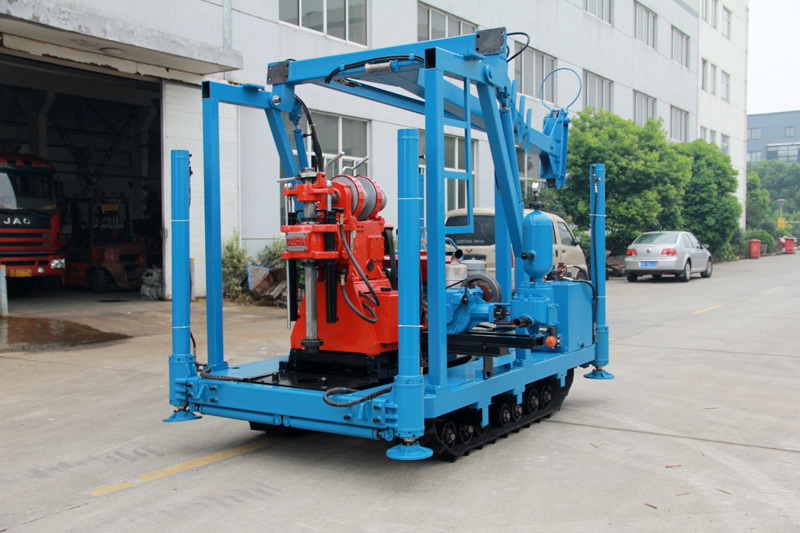

Big Diameter Exploration Drilling Rig For Geological Exploration Hydraulic Chuck High Torque

There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2500 N·m .

Category:

Anchor Drilling Rig

Description

Big Diameter Of Spindle Exploration Drilling Rig Hydraulic Chuck Open Clinostat More Speed Grade High Torque Skid Mounted Crawler Mounted 200 Meters

Quick Detail:

1. There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2500 N·m .

2. Easy to master the hole condition with a long life anti-vibration meter.

3. It is convenient for you to treat trouble with two reverse speeds to avoide the accidents in the hole.

4.Oening the clinostat, it is easy to lift and loose the drill,it also have the hydraulic chuck.

Description :

1. Model GYQ200/200A drilling rig is a kind of spindle rotatory drilling rig. It was developed by Wuxi Mineral Exploration Machinery General Factory, Jiangsu Province.

2.It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel.

3.By using the hydraulic fed, the drilling rig can move back directly.

4. It is convenient for you to treat trouble with two reverse speeds to avoide the accidents in the hole.

5. This drilling rig has various chassis mode like skid mounted, crawler mounted.

Applications :

1.Engineering geological exploration.

2. Survey and exploration of solid mineral deposit.

3.Water discharge tunnel.

4.Inspecting hole of various concrete stucture.

Specifications :



Modle GYQ-200 GYQ-200A
Hole depth 250m

Hole angle(°)

0-360°
Spindle speed Forward speed:55;96;152;263;455;718;990rpm
Reverse speed:44/206rpm
Stroke of spindle 500mm
Max .lifting capacity 49KN
Max .feeding capacity 36KN

Max .distance from the spindle lower to the earth surface

330mm
Hoist

Max .lifting capacity

(single line):

25KN
Lifting speed: 0.38;0.66;1.05;1.44m/s
Power Electric motor: 15kw,1470rpm
Diesel engine 15kw,1800rpm
Weight 900kg
Dimensions (L×W×H) 1860×780×1480mm



Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
